Chinaware Ball Mill

1.Introduction to Chinaware Ball Mill:

The whole body of ceramic ball mill is made up of chinaware, it has very small capacity and generally used for small lot production in the trial production stage. Chinaware ball mill is a new energy-saving grinding equipment designed by domestic processing machinery experts after absorbing the newest grinding technology home and abroad. It not only improves the productivity and crushing ration, but also expands the application range. It performs an excellent job in secondary crushing, finely crushing and super finely crushing, from stone production to various ores crushing. It is now a new-generation product in mining construction that can replace spring cone crusher and update general hydraulic cone crusher and the ideal equipment for large-scale stone plant and mining crushing industry.

Chinaware ball mill is mainly used for mixing and milling materials, with even output fineness and energy-saving.it not only is used in the wet mill, but also wet mill. The machine could use the different line according to the product requirement to satisfy different requirement.

The milling fineness depends on the milling time, the motor start by the coupling reduce voltage, lower the starting electricity, and the structure is divided into integral type and freestanding type. Advantages of product are lower investment, energy saving, structure novelty, simply operated, used safely, ability even etc. It is suitable for mixing and grinding common and particular materials. User could choose the proper type and line, media material depend on material ratio, rigidity, and output size etc.

2.Working Principle of Chinaware Ball Mill:

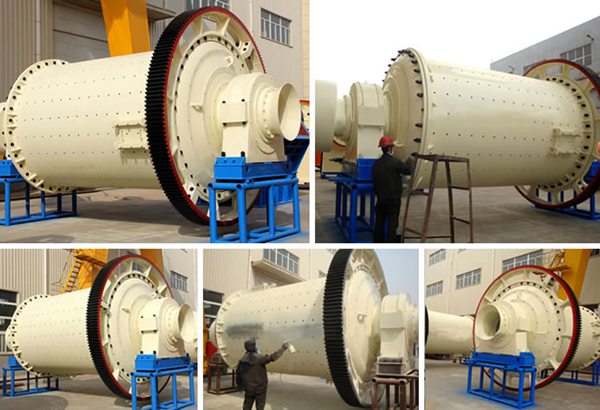

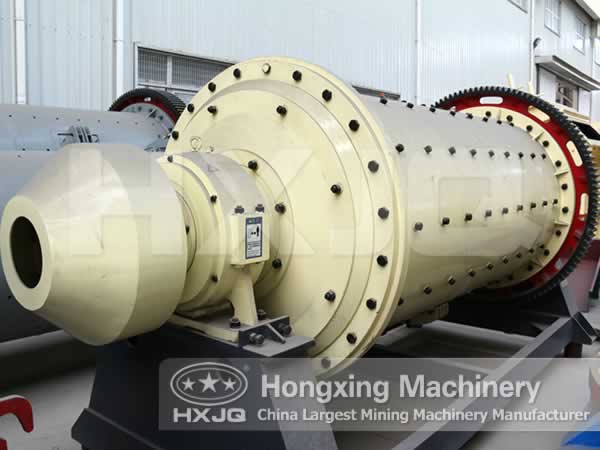

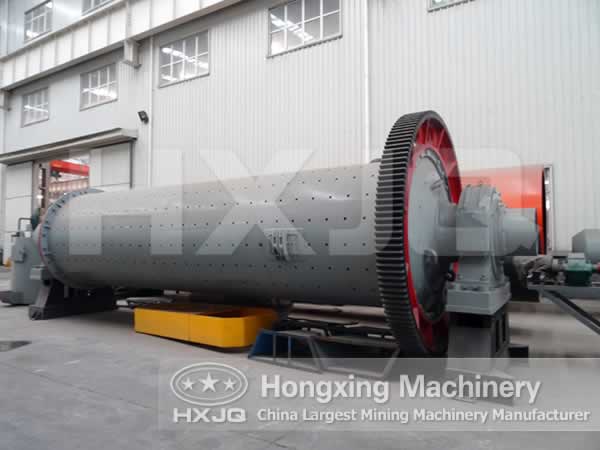

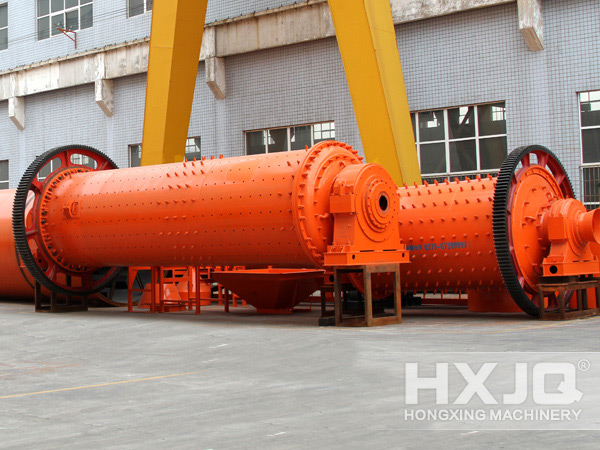

The ball mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth. Then the whole grinding process is ended. The Chinaware can work continuously 24 hours

3.Technical parameters:
