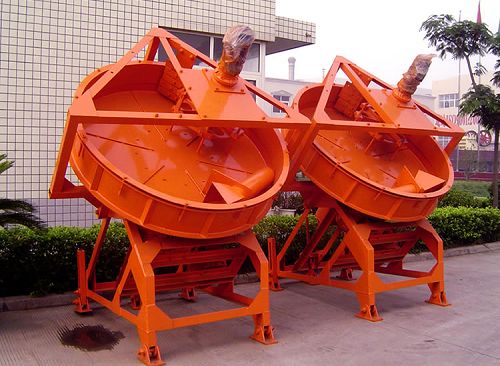

Disk Granulator

1.Introduction to Disk Granulator:

Disk granulator uses a whole arc structure, rate of granule-becoming up to 93%. Disk granulator have three feed-out mouth, convenient for intermittent production, greatly reduced the labor intensity, improve labor efficiency. Reducer and motor use Flexible belt transmission, have a smooth start-up, slow down impact, improve using life of equipment. Granulation tray's bottom using a number of radiation steel plates to strengthen, sturdiness and durability, never deformation. Thicken, aggravation. Solid base design, not need been fixed by anchor bolt, smooth operation. Disk granulator main gear use high-frequency quenching, life increase to 1 time. Disc Granulator plate lined with high-strength glass fiber, anti-corrosion and durable.

2.Working principle of Disk Granulator:

A variety of dry powder material from the top of the device by adding, after degassing, the spiral pre-compressed and delivered to the two arc-shaped notch roll, two rolls constant speed, reverse rotation, the material to bite into the slot and be forced compression, material through the compression zone the pressure gradually decreases, and its surface tension and gravity so that the natural prolapse into the crushed and whole crusher machine, trim, re-entering the vibrating screen for screening, qualified to be sent through the conveyor finished product warehouse or direct packaging, powder materials through the sieve again returned back to raw material storage device a second roll, squeeze pressure, particle size intensity according to the needs of the hydraulic system to adjust. Slot by changing the form of the roll surface can be obtained sheet, strip, olive-shaped, flat ball and other materials.

3.Technical parameters:
