Stone crushing machine

Hammer Crusher


Hammer crusher has such features of compact structure, reasonable configuration, convenient installation, good maintainability and simple operation. It has excellent adaptability to the technical pattern of cement production and can save the process arrangement space.
Features:
    • Wear resistance
    • Easy maintenance
    • Compact structure

1. Introduction to Hammer Crusher

Hammer crusher is suitable for crushing all kinds of medium hard materials with weak abradability. The compression strength of the materials to be crushed by this crusher cannot exceed 100MPa and the water content rate should be lower than 15%. The suitable materials include coal, salt, gypsum, alum, brick and tile, limestone, etc, and other than these materials, it can also be used for crushing fiber structure, elastic and tough broken wood, paper and crushing the asbestos cement waste for recycling asbestos fiber.

The main working part of the hammer crusher is the rotor with hammer. The rotor is mainly composed by the main shaft, disk, pin roll and hammer.

hammering machine

2. Working Principle

The hammering machine mainly crushes materials relying on the impacting effect. The generally crushing process goes like this: after going into the crushing machine, the materials will be impacted and crushed by the hammer with high rotary speed, and the materials crushed will gain energy motion from the hammer and rush to the baffle and grate bar with high rate, and at the same time, the materials will also impact with each other. After being crushed for many times, the materials that are smaller than the gap between the grate bar will be discharged from the gap, and the bigger materials will impacted, ground and pressed by the hammer on the grate bar until the desired granularity is satisfied.

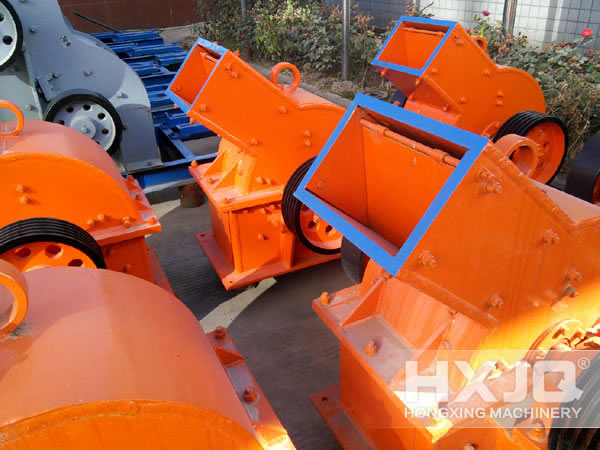

Hammer Crusher

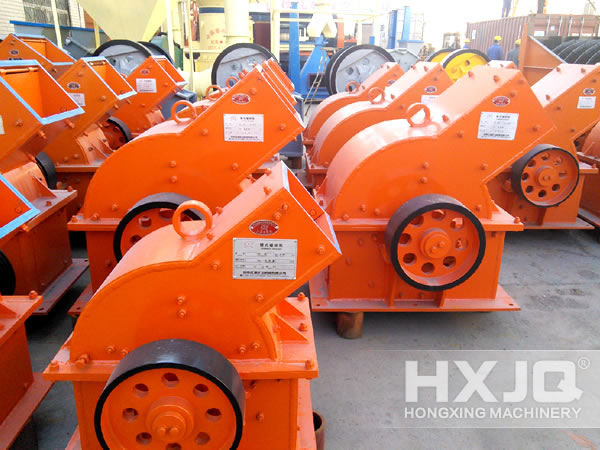

Hammer Crusher

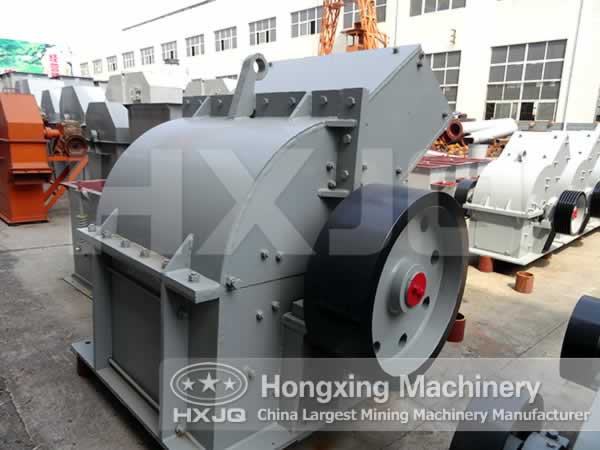

Hammer Crusher

3. Hammer breaker Technical Parameters

Specification Capacity(m³/h)
Motor Power
(kw)
PCΦ400×300 5-10 4P 11KW
PCΦ600×400 10-22 4P 22KW
PCΦ800×600 18-40 6P 55KW
PCΦ1000×800 25-50 8P 75KW
PCΦ1000×1000 30-55 8P 90KW
