Magnetic separator is one of the machines with the widest application and highest universality in the mining industry and it is suitable for removing the iron to recycle the powder particles. Magnetic separator is widely used for the resources recycling in lumbering, mining, ceramics, chemistry and food industry.
    • Automatic control
    • To facilitate the change process
    • High versatility

1. Introduction to the magnetic separator:

Magnetic separator is widely used for the resource recovery in timber industry, mining industry, ceramic industry, chemical industry, food and other workshop. The equipment is not only suitable for wet magnetic separation of the material that the granularity is below 3mm in the magnetite, pyrrhotite, roasted ore, ilmenite and other materials, but also suitable for the deironing operation in coal, non-metallic minerals, building materials and other materials. It is one of the most widely used and versatility equipment in the mining industry.

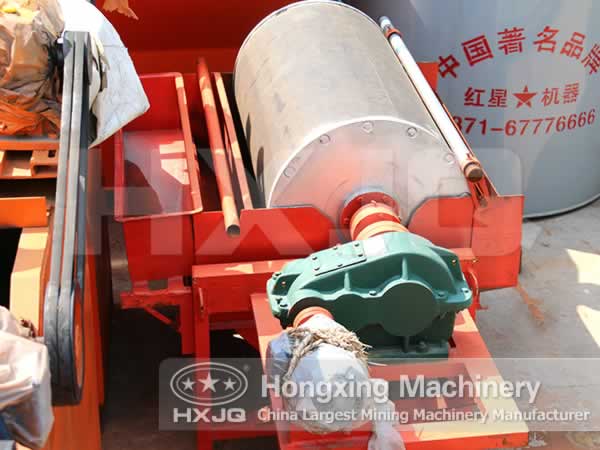

Magnetic Separator

2 Working principle:

Pulp will flow into the tank through the mine box, under the effect of water in the feeder spray pipe; the mineral particles will enter into the mining area of the trough in loose state. Under the effect of magnetic separator, the magnetic ore particles will magnetically together and form a 'magnetic group' or 'flux linkage'. Under the magnetic force of the 'magnetic group' or 'flux linkage' in the pulp will remove to the magnetic pole, the mineral particles will be adsorbed on the cylinder. Since the polarity of the magnetic poles is alternately arranged along the cylinder rotation direction and fixed during the working process, the non-magnetic minerals in the 'magnetic group' or 'flux linkage' will fall down. The remaining 'magnetic group' or 'flux linkage' adsorbed on the cylinder is concentrate. Concentrate will rotate with the cylinder to the edge of the magnetic system. Under the effect of water spray, the concentrate will enter into the concentrate tank. Non-magnetic or weakly magnetic minerals are left with the pulp in the discharge chute, namely tailings.

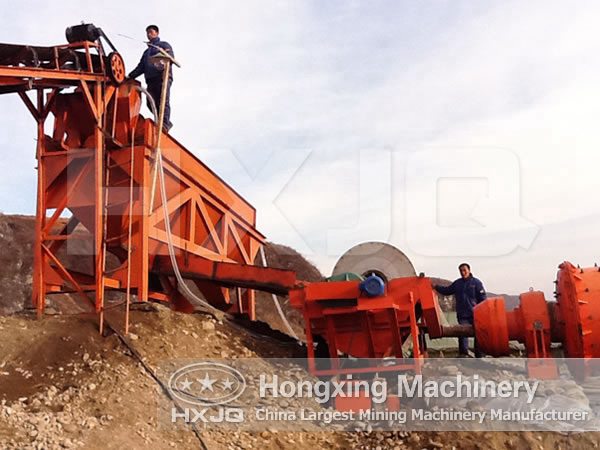

Magnetic Separator

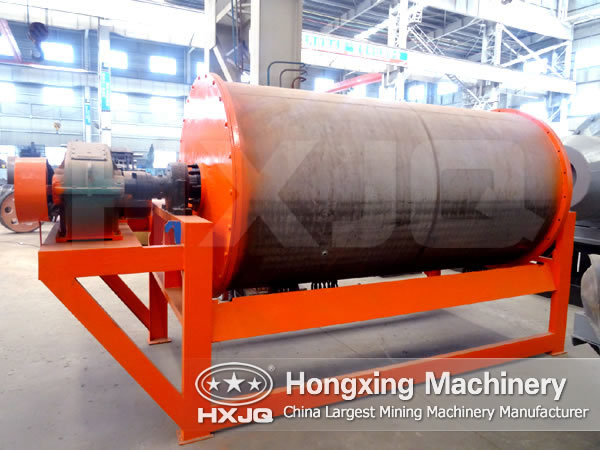

Magnetic Separator

Magnetic Separator

Magnetic Separator

3 Technological parameters:

Model Shell diameter
Shell lenght
Shell rotation
Feeding size
Processing capacoty
CTB6012 600 1200 <35 2-0 10-20 1.5
CTB6018 600 1800 <35 2-0 15-30 2.2
CTB7518 750 1800 <35 2-0 20-45 2.2
CTB9018 900 1800 <35 3-0 40-60 3
CTB9021 900 2100 <35 3-0 45-60 3
CTB9024 900 2400 <28 3-0 45-70 4
CTB1018 1050 1800 <20 3-0 50-75 5.5
CTB1021 1050 2100 <20 3-0 50-100 5.5
CTB1024 1050 2400 <20 3-0 60-120 5.5
CTB1218 1200 1800 <18 3-0 80-140 5.5
CTB1224 1200 2400 <18 3-0 85-180 7.5
CTB1230 1200 3000 <18 3-0 100-180 7.5
CTB1530 1500 3000 <14 3-0 170-280 11
