Saving Cone Ball Mill


Hongxing Saving Cone Ball Mill changes the structure of traditional Saving Cone Ball Mill and the machine frame and the chassis are integrated, so that it can be installed on the basic plane for one time.
Features:
    • Reliability
    • Simple operation
    • Long life

1.Description of the Saving Cone Ball Mill

Saving cone ball mill is a king of common ball mill in the production of the ore beneficiation. This machine changes the original mill structure, which makes the organism and under flame integrated as a whole. When installing, it can be placed in the basic plane. The main gearing uses double row self-aligning roller bearing, which reduces 30% of the energy consumption, improves fine grit and increases 15% to 20% of processing power. The saving cone ball mill is the key re-crushed equipment, which plays role in the crushing the crushed materials. It's widely used in the production of the cement, silicate products, new building materials, refractory, fertilizer, black and non-ferrous metal beneficiation and glass ceramic industry, which is used in the wet or dry grinding of various ores and other materials.

2. Working Principle

This machine uses a horizontal cylindrical rotating device. The materials evenly enter the first chamber of the mill through the feeding device. The chamber has the ladder liner and corrugated liner, which has different specifications of steel ball. The centrifugal force generated by the cylinder rotating will throw the steel ball to a certain height and then falls, which has pounding and grinding effects on the on the materials. After having coarsely grinded in the first chamber, the materials enter the second chamber through compartment plate. This chamber is lined with flat lining and steel ball, which will further grind the materials. Last, the power will be discharged through the discharge grate plate.

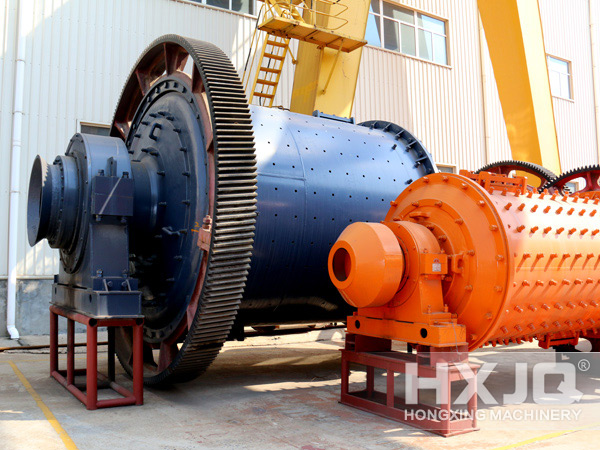

Saving Cone Ball Mill

Saving Cone Ball Mill

Saving Cone Ball Mill

Saving Cone Ball Mill

3. Technical Parameters

Model Shell rotation speed
(r/min)
Ball load
(t)
Feeding size
(mm)
Discharging size
(mm)
Capacity
(t/h)
Motor power
(kw)
Total weight
(t)
Ф900×1800 36-38 1.5 <20 0.075-0.89 0.65-2 18.5 5.85
Ф900×3000 36 2.7 <20 0.075-0.89 1.1-3.5 22 6.98
Ф1200×2400 36 3 <25 0.075-0.6 1.5-4.8 30 13.6
Ф1200×3000 36 3.5 <25 0.074-0.4 1.6-5 37 14.3
Ф1200×4500 32.4 5 <25 0.074-0.4 1.6-5.8 55 15.6
Ф1500×3000 29.7 7.5 <25 0.074-0.4 2-5 75 19.5
Ф1500×4500 27 11 <25 0.074-0.4 3-6 110 22
Ф1500×5700 28 12 <25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 <25 0.074-0.4 4-10 130 34.5
Ф1830×4500 25.4 15 <25 0.074-0.4 4.5-12 155 38
Ф1830×6400 24.1 21 <25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 <25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 <25 0.074-0.4 6.5-36 155 45
Ф2100×4500 23.7 24 <25 0.074-0.4 8-43 245 56
Ф2100×7000 23.7 26 <25 0.074-0.4 12-48 280 59.5
Ф2200×4500 21.5 27 <25 0.074-0.4 9-45 280 54.5
Ф2200×6500 21.7 35 <25 0.074-0.4 14-26 380 61
Ф2200×7000 21.7 35 <25 0.074-0.4 15-28 380 62.5
Ф2200×7500 21.7 35 <25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 <25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 <25 0.074-0.4 8.5-60 320 72
Ф2700×4000 20.7 40 <25 0.074-0.4 22-80 380 95
Ф2700×4500 20.7 48 <25 0.074-0.4 26-90 480 102
Ф3200×4500 18 65 <25 0.074-0.4 As per process conditions 630 149
Ф3600×4500 17 90 <25 0.074-0.4 As per process conditions 850 169
Ф3600×6000 17 110 <25 0.074-0.4 As per process conditions 1250 198
Ф3600×8500 18 131 <25 0.074-0.4 45.8-256 1800 260
Ф4000×5000 16.9 121 <25 0.074-0.4 45-208 1500 230
Ф4000×6000 16.9 146 <25 0.074-0.4 65-248 1600 242
Ф4000×6700 16.9 149 <25 0.074-0.4 75-252 1800 249
Ф4500×6400 15.6 172 <25 0.074-0.4 84-306 2000 280
Ф5030×6400 14.4 216 <25 0.074-0.4 98-386 2500 320
Ф5030×8300 14.4 266 <25 0.074-0.4 118-500 3300 403
Ф5500×8500 13.8 338 <25 0.074-0.4 148-615 4500 525

4. China Saving Ball Mill

Detail Consultation on the saving cone ball mill: +86-371- 67833171

The address of the saving cone ball mill manufacturer: No.8 Tanxiang Road, High & New Technology Industries Development Zone of Zhengzhou, Henan, China.
